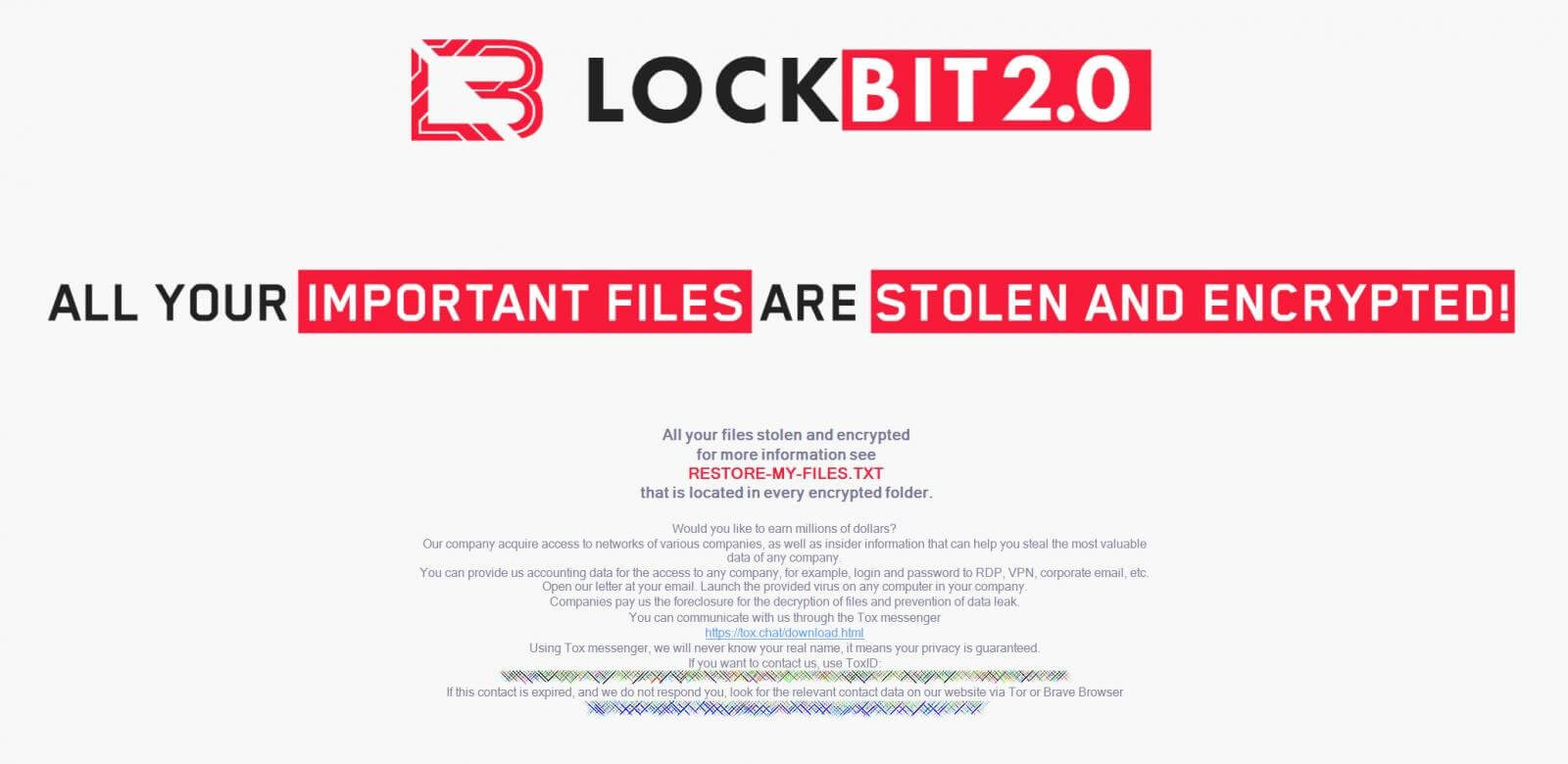

The LOCKBIT 2.0 ransomware group has been highly active in the past few months and It has gained huge popularity among threat actors since the first version of the ransomware family appeared in September 2019. It is distributed via various underground (russian)forums, and targets victims in the United States, Canada, Europe, Asia, and Latin America. LOCKBIT 2.0 developers customize ransomware variants as per their affiliates’ needs. The malware uses the double extortion technique to compel victims into paying ransoms. Through this technique, attackers exfiltrate the victim’s data, after which they proceed to encrypt the data on the victim’s system. Data encryption is followed by the attackers demand ransom in exchange for a decryptor. If the victim refuses or cannot pay the ransom, the attackers threatens to leak the data.The extension used by this ransomware is “.lockbit”.

Technical Analysis

Anti-Debug

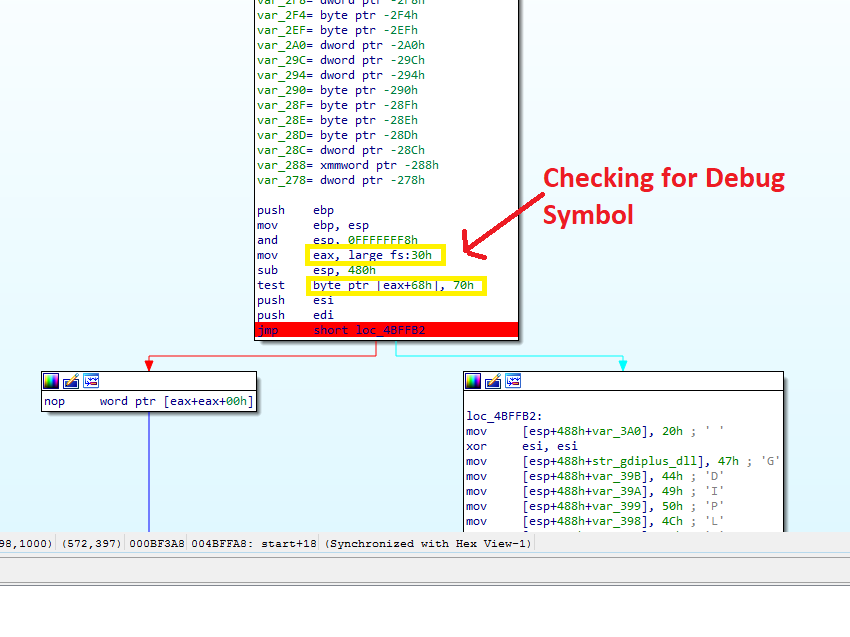

From a first glance at the recent LockBit sample with a reverse-engineering tool, we can tell that the program was written primarily in C++ with some additions made using Assembler. For example, a few anti-debug techniques employ the fs:30h function call to manually check the PEB (Process Environment Block) for the BeingDebugged flag, instead of using IsDebuggerPresent().

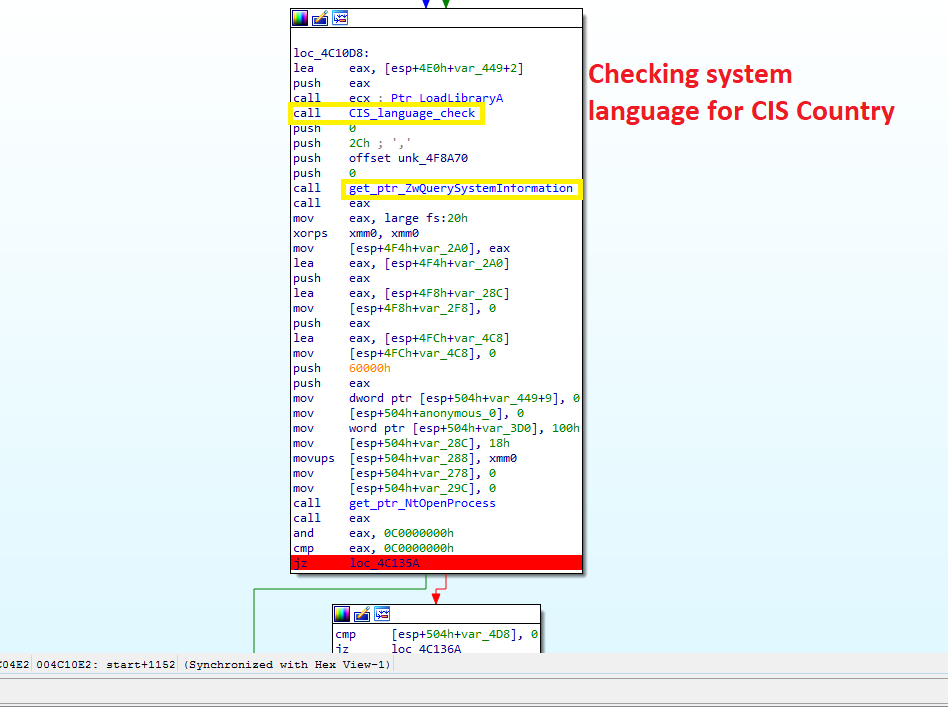

As many other cyber-criminal services, LockBit does not allow the use of the software in any of the CIS countries. This is commonly done to avoid (FSB) prosecution if the threat actor resides in one of those nations. as we have seen previously, CIS authorities don’t bother investigating these groups unless they are operating against targets in their area of jurisdiction.

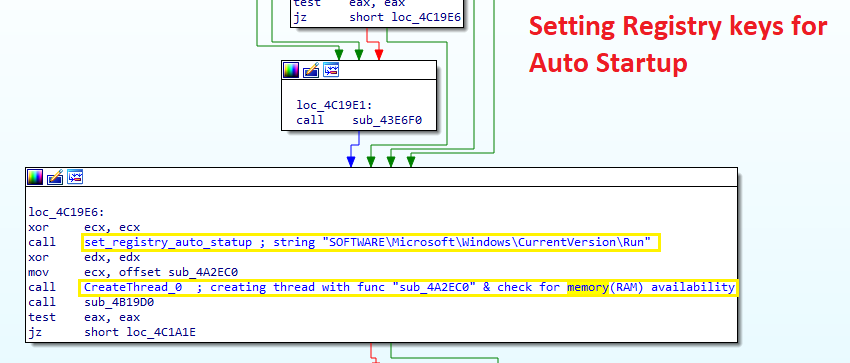

Creating persistence through Current version Run

If the system is shut down, the malware also has capability to persist after a reboot. LockBit creates a registry key to restart itself under HKCU\SOFTWARE\Microsoft\Windows\CurrentVersion\Run

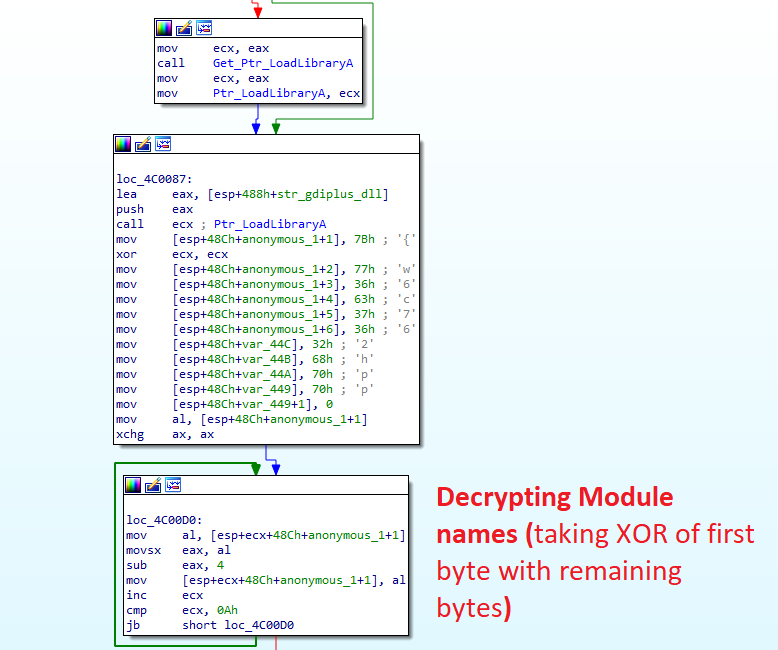

Decrypting String

LockBit ransomware loads its modules dynamically instead of having them hardcoded in the IAT and uses LoadLibraryA. This method is employed to avoid detection by static engines. Names of modules is decrypting at runtime so that they can avoid static analsis and bypass EDR/AV products.

Check your privilege and kill process

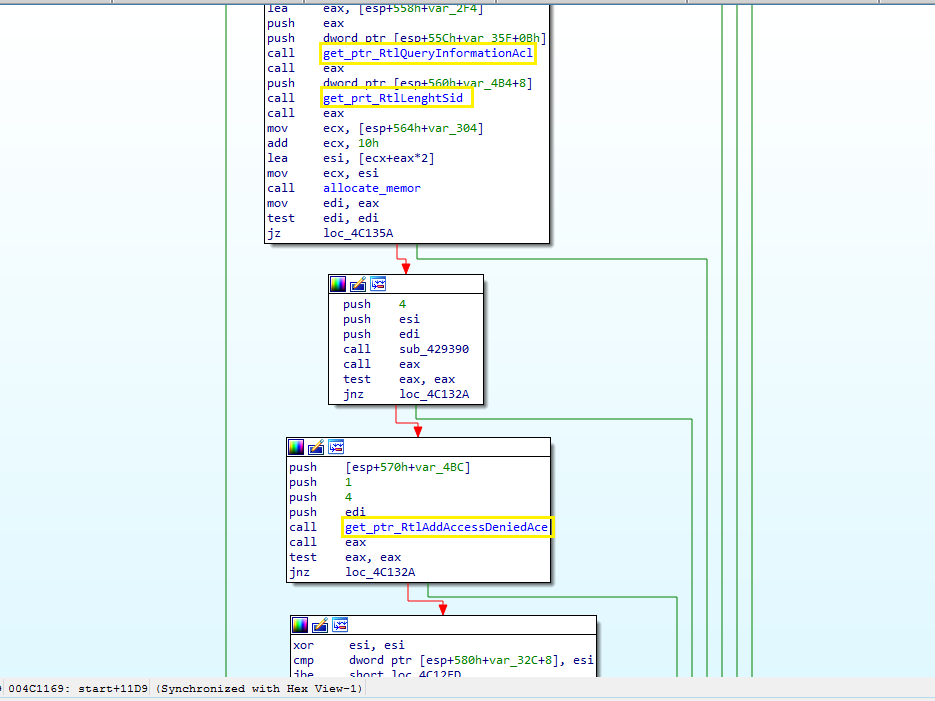

To ensure that it can do the most damage possible, LockBit has a procedure to check whether its process has Administrator privileges. And if it doesn’t, it uses a technique that is growing in popularity among malware developers: a Windows User Account Control (UAC) bypass.

Leveraging OpenProcessToken, it queries the current process via a TOKEN_QUERY access mask. After that, it calls CreateWellKnownSid to create a user security identifier (SID) that matches the administrator group (WinBuiltinAdministratorsSid), so now the malware has a reference it can use for comparisons. Finally, it checks whether the current process privileges are sufficient for Administrator rights, with a call to CheckTokenMembership.

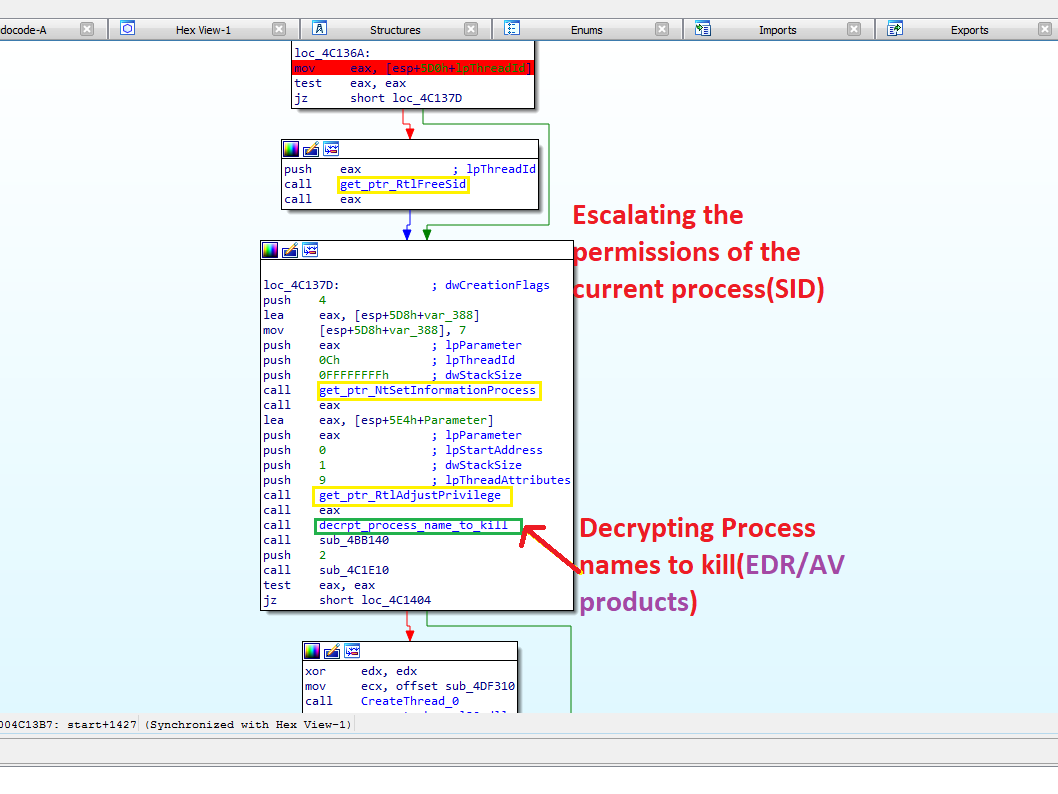

LockBit enumerates the currently running processes and started services via the API calls CreateToolhelp32Snapshot, Process32First, Process32Next and finally OpenProcess, and compares the names against an internal service and process list. If one process matches with one on the list, LockBit will attempt to terminate it via TerminateProcess.

List of Process/Service LockBit tries to kill

wxServer	wxServerView	sqlmangr	RAgui	supervise
Culture	Defwatch	winword	QBW32	QBDBMgr
qbupdate	axlbridge	httpd	fdlauncher	MsDtSrvr
java	360se	360doctor	wdswfsafe	fdhost
GDscan	ZhuDongFangYu	QBDBMgrN	mysqld	AutodeskDesktopApp
acwebbrowser	CreativeCloud	Adobe Desktop Service	CoreSync	Adobe CEF
Helper	node	AdobeIPCBroker	sync-taskbar	sync-worker
InputPersonalization	AdobeCollabSync	BrCtrlCntr	BrCcUxSys	SimplyConnectionManager
Simply.SystemTrayIcon	fbguard	fbserver	ONENOTEM	wsa_service
koaly-exp-engine-service	TeamViewer_Service	TeamViewer	tv_w32	tv_x64
TitanV	Ssms	notepad	RdrCEF	sam
oracle	ocssd	dbsnmp	synctime	agntsvc
isqlplussvc	xfssvccon	mydesktopservice	ocautoupds	encsvc
tbirdconfig	mydesktopqos	ocomm	dbeng50	sqbcoreservice
excel	infopath	msaccess	mspub	onenote
outlook	powerpnt	steam	thebat	thunderbird
visio	wordpad	bedbh	vxmon	benetns
bengien	pvlsvr	beserver	raw_agent_svc	vsnapvss
CagService	DellSystemDetect	EnterpriseClient	ProcessHacker	Procexp64
Procexp	GlassWire	GWCtlSrv	WireShark	dumpcap
j0gnjko1	Autoruns	Autoruns64	Autoruns64a	Autorunsc
Autorunsc64	Autorunsc64a	Sysmon	Sysmon64	procexp64a
procmon	procmon64	procmon64a	ADExplorer	ADExplorer64
ADExplorer64a	tcpview	tcpview64	tcpview64a	avz
tdsskiller	RaccineElevatedCfg	RaccineSettings	Raccine_x86	Raccine
Sqlservr	RTVscan	sqlbrowser	tomcat6	QBIDPService
notepad++	SystemExplorer	SystemExplorerService	SystemExplorerService64	Totalcmd
Totalcmd64	VeeamDeploymentSvc

Encrytion

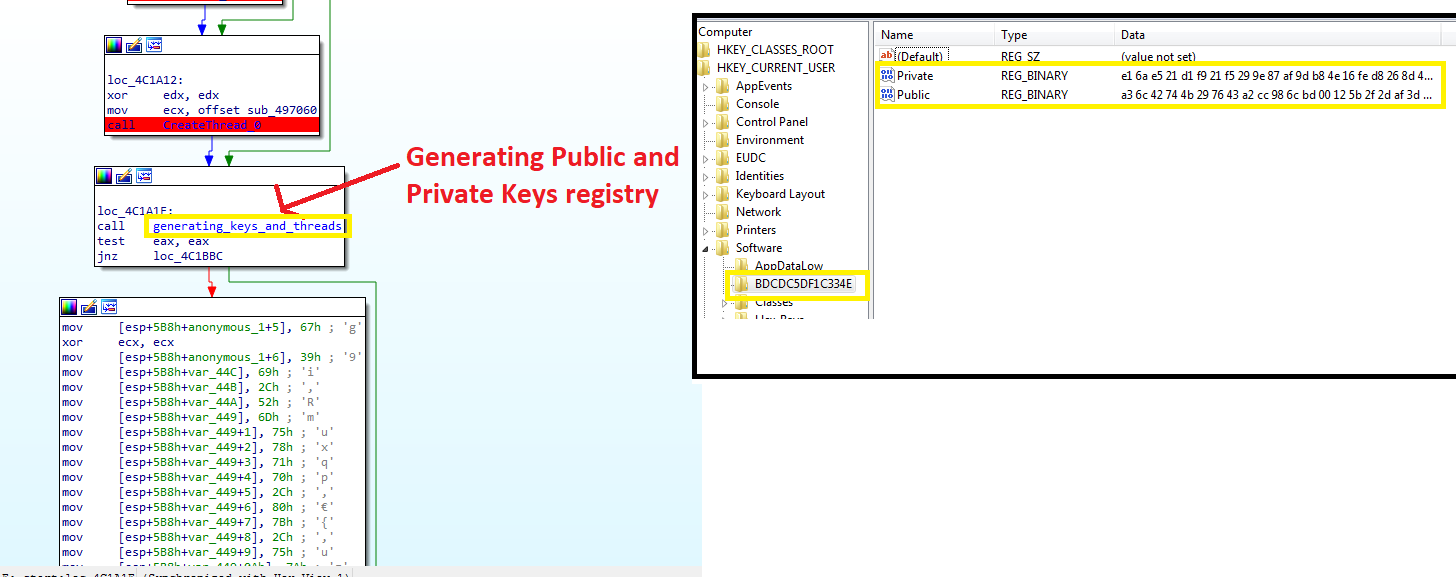

HKEY_CURRENT_USER\Software\BDCDC5DF1C334E\Public HKEY_CURRENT_USER\Software\BDCDC5DF1C334E\Private

These two registry keys are used as part of the encryption process.

LockBit is using the Input/Output Completion Ports (IOCPs).

IOCPs are a model for creating a queue to efficient threads to process multiple asynchronous I/O requests. They allow processes to handle many concurrent asynchronous I/O more quickly and efficiently without having to create new threads each time they get an I/O request.

Underground forums

Trust

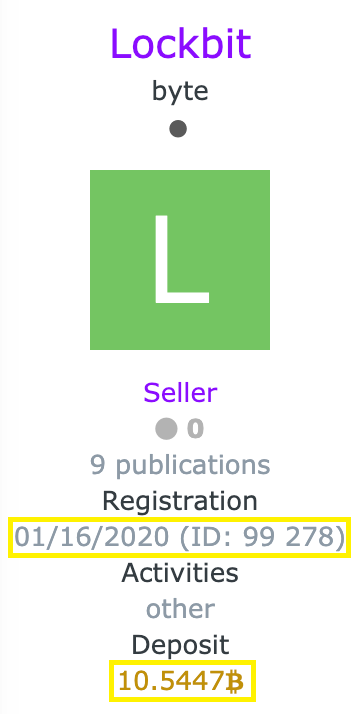

LockBit has joined the underground darkweb forum with a clear determination to do business; the authors have put a down a deposit in excess of 10.5 BTC. Putting a deposit in escrow is a way to demonstrate that the seller is invested financially and not out to scam potential partners.

Support

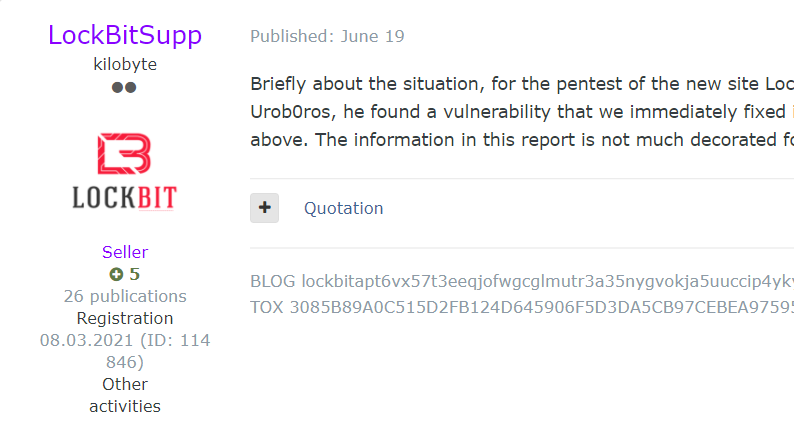

we can see that the user is quite active currently on underground forums
